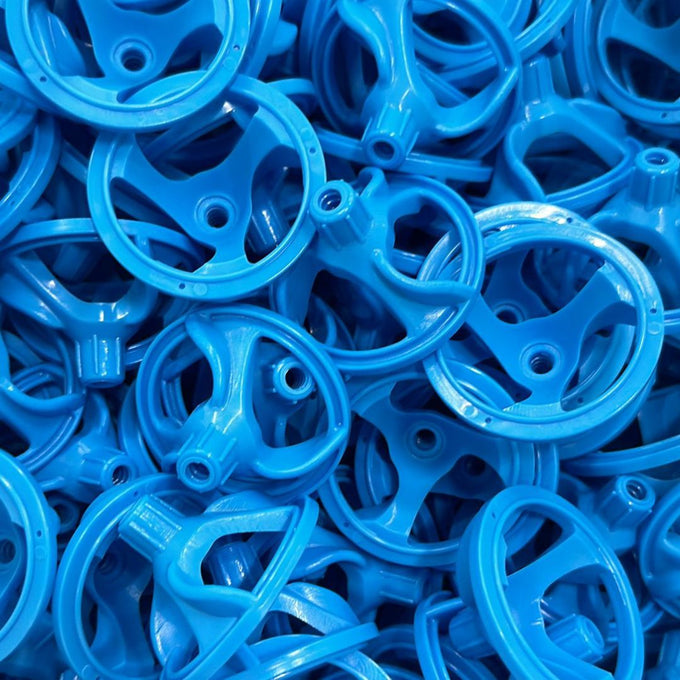

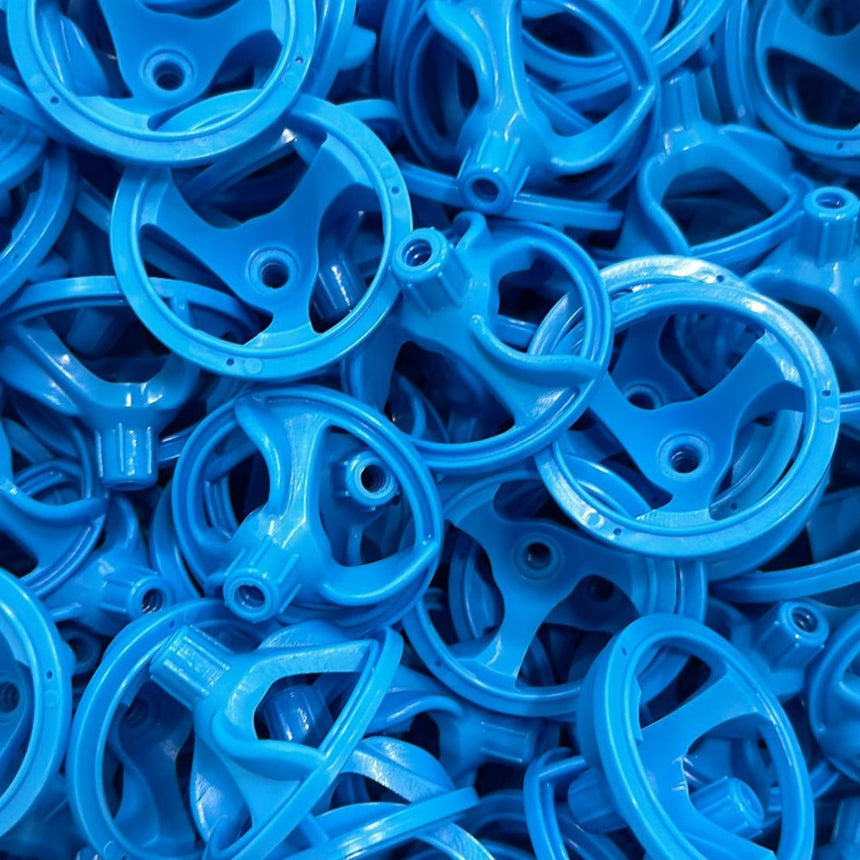

Big Spin Hurricane Replacement Tile Leveller Caps x 100 (BSHC177) — Reusable Caps Compatible with All Big Spin Hurricane & Big Spin Bases

Big Spin Hurricane Tile Leveller Caps are one of the best replacement tile levelling caps on the market — and an excellent example of how a simple, well-engineered component makes a real difference to the economics of a professional tiling kit. They're a product our customers consistently come back to tell us they're delighted with: genuinely reusable, built to last, and fully interchangeable across the entire Big Spin Hurricane and Big Spin levelling system — so you never need to replace the whole kit just because you've used up your bases.

Compatible with all Big Spin Hurricane Standard bases (1mm, 2mm, 3mm — tiles 3–15mm) and Deep bases (4mm, 5mm, 6mm — tiles 15–25mm, including 20mm outdoor porcelain paving), the BSHC177 caps are the reusable half of the system: one cap fits every joint size, buy once, and top up only the inexpensive bases between jobs.

We're a small, family-run business — I'm Cleo, the owner, with over 25 years in the construction industry working with businesses including Tarmac and Instarmac. I work alongside a team of incredibly knowledgeable and caring individuals, and between us we've seen a lot of levelling systems come and go. The ones that earn their place in a professional kit are the ones built around a clear, logical mechanism — and Big Spin Hurricane is exactly that. The cap is the component you invest in; the base is the consumable. It's a far better long-term proposition than buying a complete kit every time.

We'd confidently recommend these replacement caps to any tiler or contractor already using the Big Spin Hurricane or Big Spin system — whether you're working with standard indoor tiles on the Standard range or 20mm outdoor porcelain paving on the Deep range. One set of reusable caps. Six joint sizes. Every tile thickness from 3–25mm covered. If you're not sure which bases to pair them with, give us a call — we'll help you choose.

How the Big Spin Hurricane System Works

Big Spin Hurricane is a two-part mechanical tile levelling system. The threaded base slides under the tile edge; the cap threads onto the base and is spun down by hand until adjacent tile surfaces are brought into perfect alignment. No wedges. No specialist pliers. No tools beyond your standard installation kit.

Slide the base. Position the tile. Spin the cap. Leave to cure. Kick off the base. Store the cap. Repeat.

The cap is the part you keep. After the adhesive cures, kick the bases off in the direction of the grout joint, unscrew the caps, clean off any adhesive residue, and store them in the tub for the next job. The reusable cap is what separates the Big Spin Hurricane from cheaper single-use systems — over the course of multiple jobs, the saving is significant.

Replacement Caps vs. Complete Starter Kits

If you already own Big Spin Hurricane or Big Spin caps and simply need to replenish your base supply, buy the bases separately and reuse your existing caps. If you're new to the system and need both components, see our Starter Kits which include caps and bases together. These replacement caps (BSHC177) are listed separately so existing users can top up without buying components they don't need.

Features & Benefits

• Genuine replacement caps for the Big Spin Hurricane and Big Spin tile levelling system
• Reusable — clean after each job and store for reuse
• Compatible with all Big Spin Hurricane bases: Standard (1mm, 2mm, 3mm) and Deep (4mm, 5mm, 6mm)
• Interchangeable with the wider Big Spin levelling system
• Covers tile thicknesses from 3mm to 25mm including 20mm outdoor porcelain paving
• Spin-to-level mechanism — tighten by hand, no specialist tools required
• Suitable for porcelain, marble, natural stone, ceramic — walls and floors

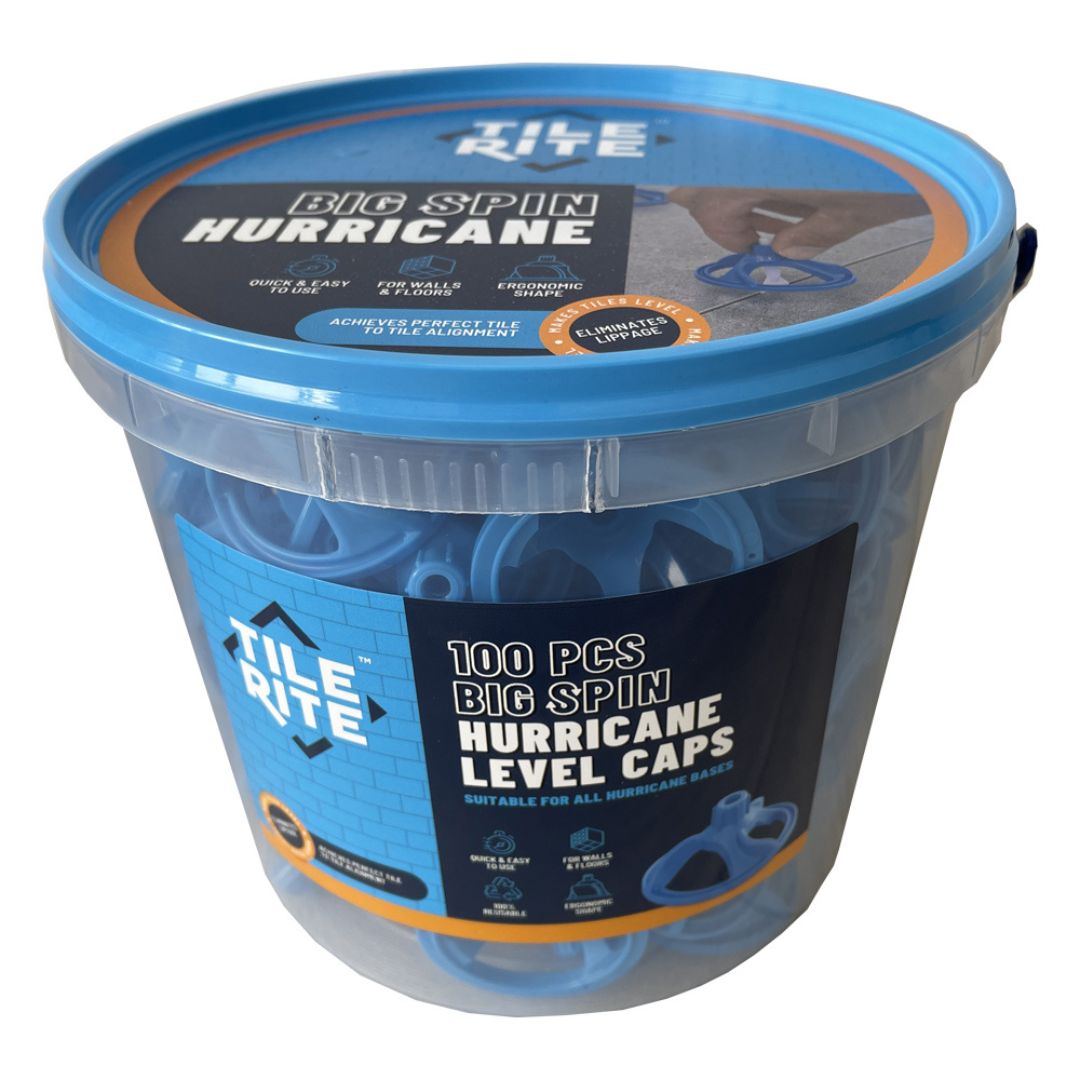

• 100 caps per tub, supplied in a handy plastic carry tub (BSHC177)
• Optional protection plates available (PPC178) for polished and gloss surfaces — sold separately
• Caps only — bases sold separately (see compatibility table below)

Which Bases Are These Caps Compatible With?

Not sure which base size is right for your tiles? Get in touch and we'll advise.

Protection Plates — Do I Need Them?

The optional Big Spin Hurricane protection plates (PPC178) sit between the cap and the tile surface during installation. We'd particularly recommend them on polished, gloss or high-value surfaces — marble, polished porcelain, honed limestone — where direct cap-to-tile contact during levelling could leave a mark or scratch the finish. They're reusable and available separately. If you're working on a premium surface and aren't sure whether to use them, give us a call.

How to Use Big Spin Hurricane Replacement Caps

1. Spread tile adhesive over the surface in the usual way.
2. Slide the threaded base underneath the edge of the tile until it sits flush against the tile face. Use 4 bases per standard square tile (one at each corner); use 6 for larger-format tiles or planks.
3. Lay the adjacent tile into position.

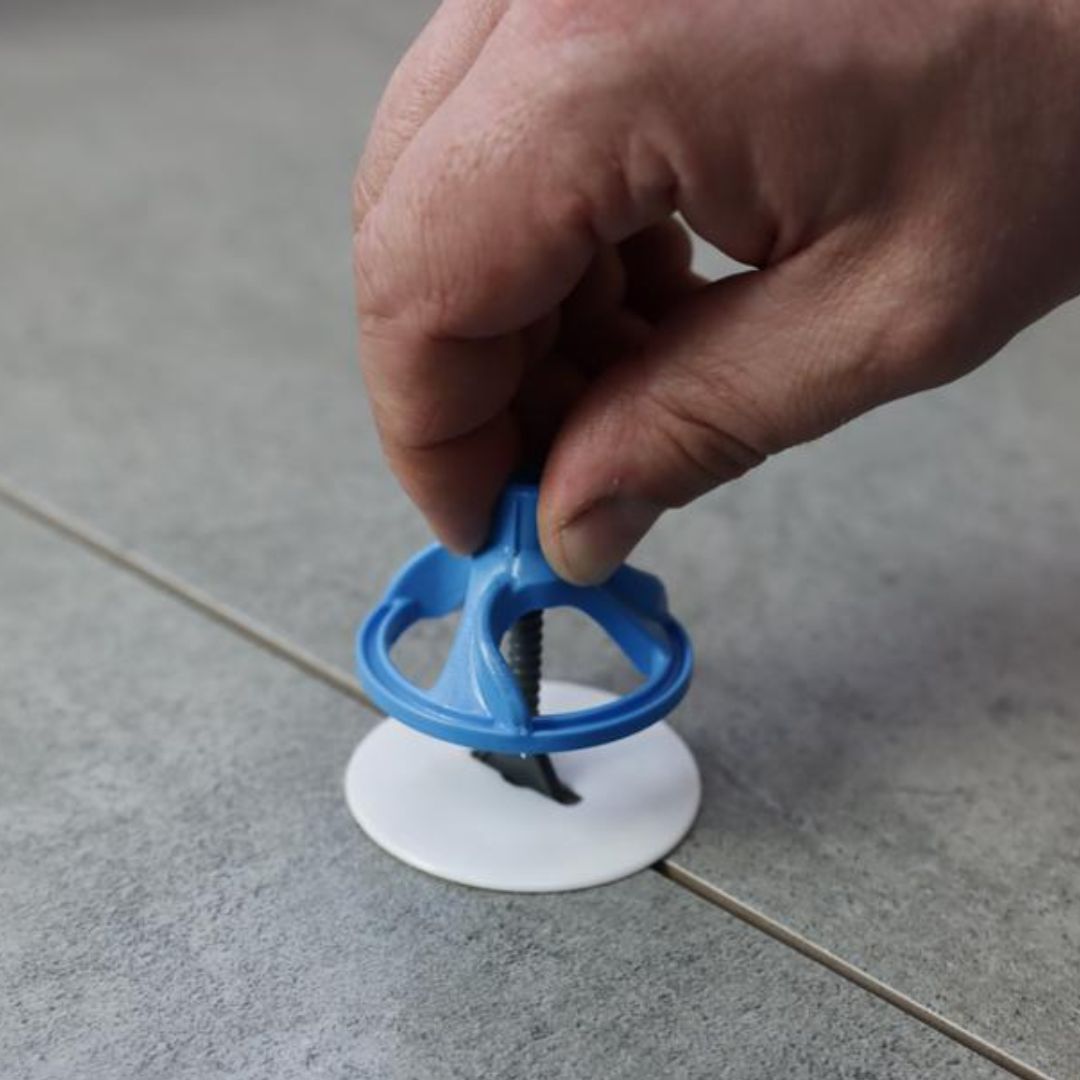

4. Place the cap (BSHC177) onto the threaded base and spin it down by hand until both tile surfaces are brought into alignment and flush with each other. For polished surfaces, fit the protection plate (PPC178) between the cap and the tile first.
5. Continue across the installation. The system holds tiles in place while the adhesive cures overnight, eliminating slumping, sinkage and lippage.
6. Once the adhesive has fully cured, remove the bases by kicking them off with your foot or using a rubber mallet in the direction of the grout joint.
7. Unscrew the caps, clean off any adhesive residue, and store them in the tub — ready for the next job.

Clean the cap before the adhesive cures to make removal easier and extend the working life of the cap.

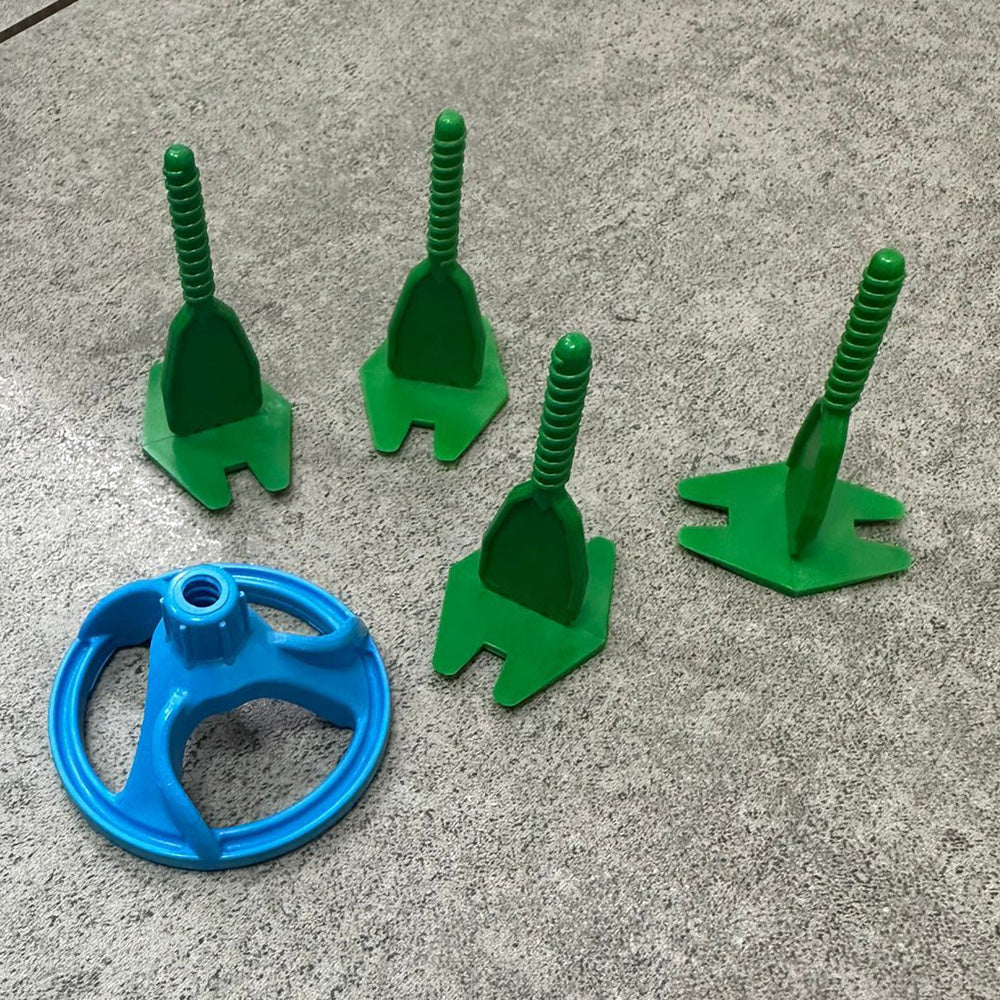

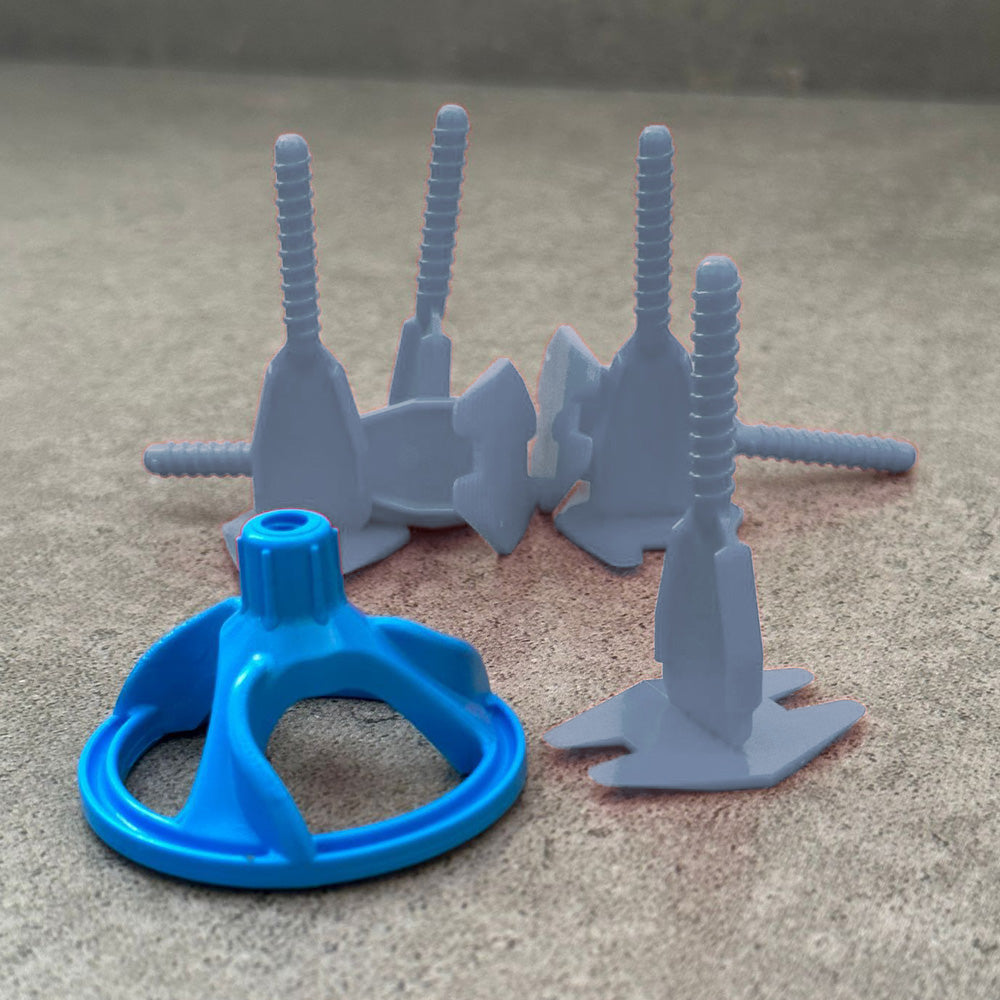

Bases sold separately — choose the right size: 1mm · 2mm · 3mm (Standard, 3–15mm tiles) · 4mm · 5mm · 6mm (Deep, 15–25mm tiles).

What is a Tile Levelling System?

Tile levelling systems are designed for perfect tile-to-tile alignment. They allow the tiling or paving contractor to level, align, space and hold each individual tile while the adhesive sets. The spacer bases and caps form a two-part system that creates a perfectly symmetrical surface, with accurate, consistent spaces between each tile for a uniform, precision joint when grouting. On large-format tiles and 20mm outdoor porcelain in particular, a levelling system is one of the most effective ways to eliminate lippage and achieve a truly professional finish.

Big Spin Hurricane Tile Leveller Caps — Frequently Asked Questions

I'm Cleo, owner of The Paving Experts, with over 25 years in the construction industry working with businesses including Tarmac and Instarmac. I work alongside a small team of incredibly knowledgeable and caring individuals who share the same passion for getting it right. The FAQ answers below come from the questions we're asked every single day.

1. What are Big Spin Hurricane Level Caps?
Big Spin Hurricane Level Caps are the reusable top component of the Big Spin Hurricane tile levelling system. They screw onto the threaded spacer bases to help bring adjacent tiles into alignment and create a more consistent finished surface.

The caps are designed for large-format porcelain, marble and stone tiles and can be used for both wall and floor tiling. They are supplied separately from the spacer bases, allowing installers to replace or add bases without having to purchase a complete levelling kit.

2. How do Big Spin Hurricane Level Caps work?
Big Spin Hurricane Caps work by screwing down onto a threaded spacer base positioned between two adjacent tiles.

Once the tiles are positioned, the cap is placed onto the threaded base and spun down towards the tile surface. As the cap is tightened, it holds the adjacent tile surfaces in alignment while the adhesive cures.

This screw-type design provides a simple, controlled way to adjust tile alignment without relying on a conventional wedge.

3. Are Big Spin Hurricane Caps reusable?
Yes — genuinely. The caps are designed to be removed after the tile adhesive has cured and reused on subsequent installations.

The caps form the reusable part of your tile levelling system, while the spacer bases are the consumable. In our experience, installers won't need to purchase equal quantities of caps and bases — once you have a working set of caps, you simply replenish the bases as needed.

4. Do Big Spin Hurricane Caps come with the bases?
No. The Big Spin Hurricane Caps are sold separately from the spacer bases.

This allows professional tilers to purchase additional caps when needed and select the appropriate spacer base for the tile thickness and grout joint required. The caps are compatible with all Big Spin Hurricane standard and deep bases.

5. Which Big Spin Hurricane bases are compatible with the caps?
The caps work with all Big Spin Hurricane threaded spacer bases.

Standard-height bases cover tiles from 3–15mm thick; deep bases are designed for 15–25mm thick tiles. Available joint sizes are 1mm, 2mm and 3mm for the standard system, with 4mm, 5mm and 6mm deep bases for thicker tiles.

6. Can Big Spin Hurricane Caps be used with 20mm porcelain?
Yes. Pair the caps with the deep bases (4mm, 5mm or 6mm), which are designed for tiles 15–25mm thick. The deep range is the right choice for 20mm outdoor porcelain. If you're unsure which joint size to use, give us a call.

7. Can I use Big Spin Hurricane Caps with different grout widths?
Yes. The cap itself is not tied to one specific grout width — you select the appropriate base for the joint width and tile thickness required.

Bases are available in 1mm, 2mm and 3mm standard sizes and 4mm, 5mm and 6mm deep sizes. The same reusable caps work across all of them.

8. Are Big Spin Hurricane Caps compatible with the Big Spin levelling system?
Yes. The Hurricane Caps are interchangeable with the wider Big Spin levelling system.

This gives installers greater flexibility — the reusable caps can be used across compatible Big Spin and Big Spin Hurricane bases, rather than being restricted to a single base configuration.

9. Can Big Spin Hurricane Caps scratch polished or gloss tiles?
The cap does make direct contact with the tile surface as it's tightened, so we'd recommend using the dedicated Big Spin Hurricane Protection Plates (PPC178) on polished and gloss tiles.

The protection plates sit between the cap and tile surface to prevent scratching during levelling. They're reusable and designed for both wall and floor applications. For delicate, polished or high-gloss surfaces, we'd always recommend using them.

10. What are Big Spin Hurricane Protection Plates used for?
The Big Spin Hurricane Protection Plates (PPC178) sit between the cap and the tile surface when installing polished or gloss tiles.

They prevent the cap from spinning directly against the tile face and potentially marking the finish. The plates are quick to fit, 100% reusable, and sold separately from both the caps and bases. We'd recommend them as standard when working on marble, polished porcelain or honed limestone.

11. Are Big Spin Hurricane Caps suitable for large-format tiles?
Yes — the Big Spin Hurricane system is specifically designed for fitting large-format porcelain, marble and stone tiles.

Using the caps with the appropriate bases helps maintain tile-to-tile alignment during installation, which is particularly important where lippage across a wide tile face would be clearly visible. We'd recommend it for any large-format installation where a precision finish matters.

12. Can Big Spin Hurricane Caps be used on walls as well as floors?
Yes. The caps are designed for use on both wall and floor tiles. The standard system covers tiles from 3–15mm; the deep system covers 15–25mm.

13. How many Big Spin Hurricane Caps do I need?
That depends on the tile format and how many levelling points you're using. As a guide, we'd recommend 4 bases per standard square tile (one at each corner) and 6 for larger-format or plank tiles — you'll need one cap per base in use at any one time.

Because the caps are reusable, you won't need to match your cap count to your total base count. Once you have a working set of caps, simply replenish the bases between jobs.

14. Why buy Big Spin Hurricane Caps separately?
Buying caps separately makes sense if you already have a working set of Big Spin or Hurricane bases and just need to increase your cap count — or if your existing caps have been lost, damaged or worn over time.

It also means you can build a reusable levelling kit around different tile thicknesses and joint widths without paying for components you already own.

15. What is the difference between Big Spin Hurricane Caps and standard tile levelling wedges?
Big Spin Hurricane Caps use a screw/spin mechanism rather than a traditional wedge pushed through a levelling clip.

The cap screws directly onto the threaded base, allowing you to spin it down by hand until the tiles are flush — no separate wedge, no specialist pliers. In our experience, the screw/spin action gives you more controlled, repeatable levelling pressure than a wedge system, and the reusable cap design makes it more economical over multiple jobs.

16. Can Big Spin Hurricane Caps be used for outdoor porcelain paving?
Yes. When combined with the deep bases, Big Spin Hurricane Caps are suitable for outdoor porcelain paving including 20mm porcelain. We'd recommend the 5mm deep base as a starting point for most 20mm outdoor porcelain installations, though the right joint size will depend on your specific project.

17. Do Big Spin Hurricane Caps help prevent tile lippage?
Yes — that's exactly what the system is designed to do. By holding adjacent tile surfaces in the same plane while the adhesive cures, it minimises height differences between neighbouring tiles — what we call lippage. On large-format tiles, even a small lip is highly visible, so we'd recommend using a levelling system as standard on any large-format installation.

18. Can I use Big Spin Hurricane Caps more than once?
Yes. Remove them after the adhesive has cured, clean off any residue, and store them in the tub for the next job. Only the bases need to be replaced between installations.

19. What size Big Spin Hurricane Cap pack can I buy?
The caps are currently available in a 100-piece pack (BSHC177 — this listing) and a larger 250-piece Big Tub option (BSHC425). If you're looking for the 250-cap tub, get in touch and we can help.

20. Are Big Spin Hurricane Caps suitable for professional tilers?
Absolutely. The system is designed with professional installation in mind — reusable caps, interchangeable bases, and both standard and deep configurations to cover every common tile thickness from 3mm to 25mm. In our experience, it's one of the most versatile and cost-effective levelling systems available for professional use.

Got a question about Big Spin Hurricane? Call us on ☎️ 0330 122 1025 or drop us a message through our contact form — we'll get back to you by email or phone as soon as we can. We're a small team, but happy to help.

• Brand: Tile Rite
• Product Type: Tile Spacer Caps
• SKU: TPE-BIGSPIHURCAP
• Weight: 1.0 kg / 2.2 lb
