Tile Rite 210mm Battery Vacuum Suction Cup: For Smooth & Lightly Textured Large Format Porcelain & Stone Tiles
About the product
The Tile Rite 210mm Battery Vacuum Suction Cup is portable, battery operated & lifts non-porous, smooth & lightly textured slabs, both vertically or horizontally up to 130KGs (243Lbs). Small and versatile, it comes with a robust, blow moulded carry case with handle, and contains 2 x batteries for uninterrupted use all day long! With a built in digital gauge & manual display & automatic air replenishment to ensure that the right level of suction is achieved
Choose from either a single or twin pack – save £20.00 on a Dual Pack. Have a few more questions? Give us a call on ☎️ 0330 122 1025
Tile Rite 210mm Battery Vacuum Suction Cup: For Smooth & Lightly Textured Large Format Porcelain & Stone Tiles
For Highlands, Guernsey, Jersey, Isle of Man, and Isle of Wight – call 0330 122 1025.
For Highlands, Guernsey, Jersey, Isle of Man, and Isle of Wight – call 0330 122 1025.
About the product
The Tile Rite 210mm Battery Vacuum Suction Cup is portable, battery operated & lifts non-porous, smooth & lightly textured slabs, both vertically or horizontally up to 130KGs (243Lbs). Small and versatile, it comes with a robust, blow moulded carry case with handle, and contains 2 x batteries for uninterrupted use all day long! With a built in digital gauge & manual display & automatic air replenishment to ensure that the right level of suction is achieved
Choose from either a single or twin pack – save £20.00 on a Dual Pack. Have a few more questions? Give us a call on ☎️ 0330 122 1025
Tile Rite 210mm Battery Vacuum Suction Cup: For Smooth & Lightly Textured Large Format Porcelain & Stone Tiles

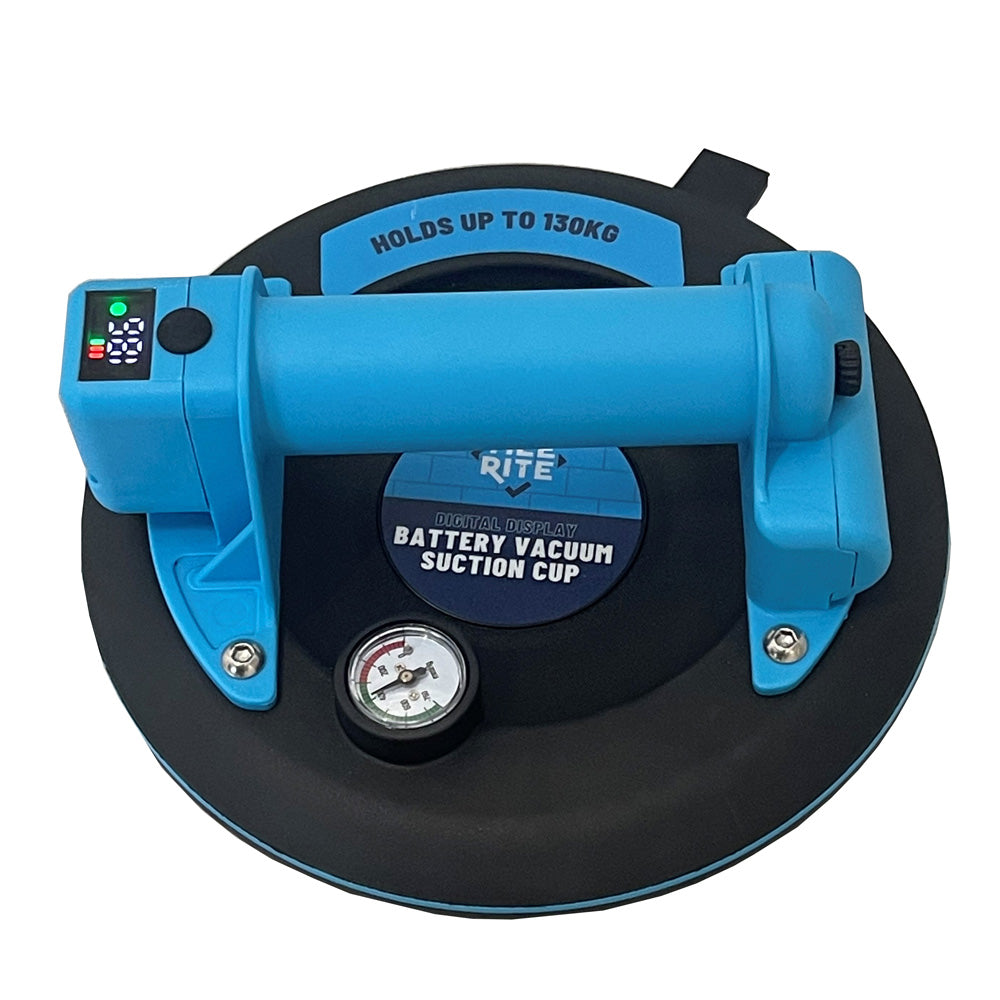

The Tile Rite 210mm Battery Vacuum Suction Cup is small & handy fully portable battery operated vacuum suction cup. The key feature is that unlike many other lifters on the market, this vacuum cup has two batteries for uninterrupted use whilst working on site. This new vacuum lifter, is a compact, versatile tool which also helps the operator protect their back whilst lifting heavy objects.
This versatile battery vacuum suction cup allows domestic users or contractors to easily lift large format paving slabs & tiles up to 130KG’s in weight safely. The Tile Rite Battery Vacuum Suction Cup lifts smooth & lightly textured tiles and paving slabs, and even lifts wood and glass. This model comes with an easy read, digital gauge & manual display.
Traditionally vacuum lifters are large, cumbersome and challenging to use - this newer generation of compact, battery operated lifters makes lifting tiles and slabs much safer and easier. The 130KG grabbing force in this small vacuum suction cup secures itself safely to most surfaces – smooth or lightly riven, keeping consistent pressure evenly across the surface of your tile or slab.
Using the Tile Rite 210mm Battery Vacuum Suction Cup, means that moving about large, heavy, cumbersome and oversized materials is so much faster and safer, whilst minimising the risk of any damage to expensive tiles or slabs.
Need a couple? Why not take advantage of our double pack offer!
How to Operate the Tile Rite 210mm Battery Vacuum Suction Cup
- Ensure that both sets of batteries are charged for uninterrupted, continuous use
- Ensure the base of the vacuum cup is clean and free of dirt, dust and debris
- Place the vacuum suction cup onto the tile, glass or material to be lifted and press the button to achieve suction
- Ensure that the digital display monitor is steady and working before you lift your tile or paving slab
- When using on riven or textured materials, a performance test should be undertaken before lifting
- Release the tile or slab with the air release mode after lifting and placing
- If the load has a protective film, it must be removed before the suction pad is placed on the load
- When using two vacuum suction cups on larger material, ensure the cups are positioned equal distances from the edges of the tile to achieve a balanced lift
Tile Rite 210mm Battery Vacuum Suction Cup Features & Benefits:
- Size: 210mm
- Maximum Lifting Capacity: 243 Lbs (130 kg)
- Handle Length: 110mm
- Nominal Voltage: D.C. 3.7V - 4.2V
- Battery Specification: 21700
- Rated Power: 3W
- Weight: 1KG
- Battery Operated Vacuum Suction Cup
- Hold type: Vertical or Horizontal
- Designed for smooth & slightly textured large format tiles
- For porcelain & natural stone tiles

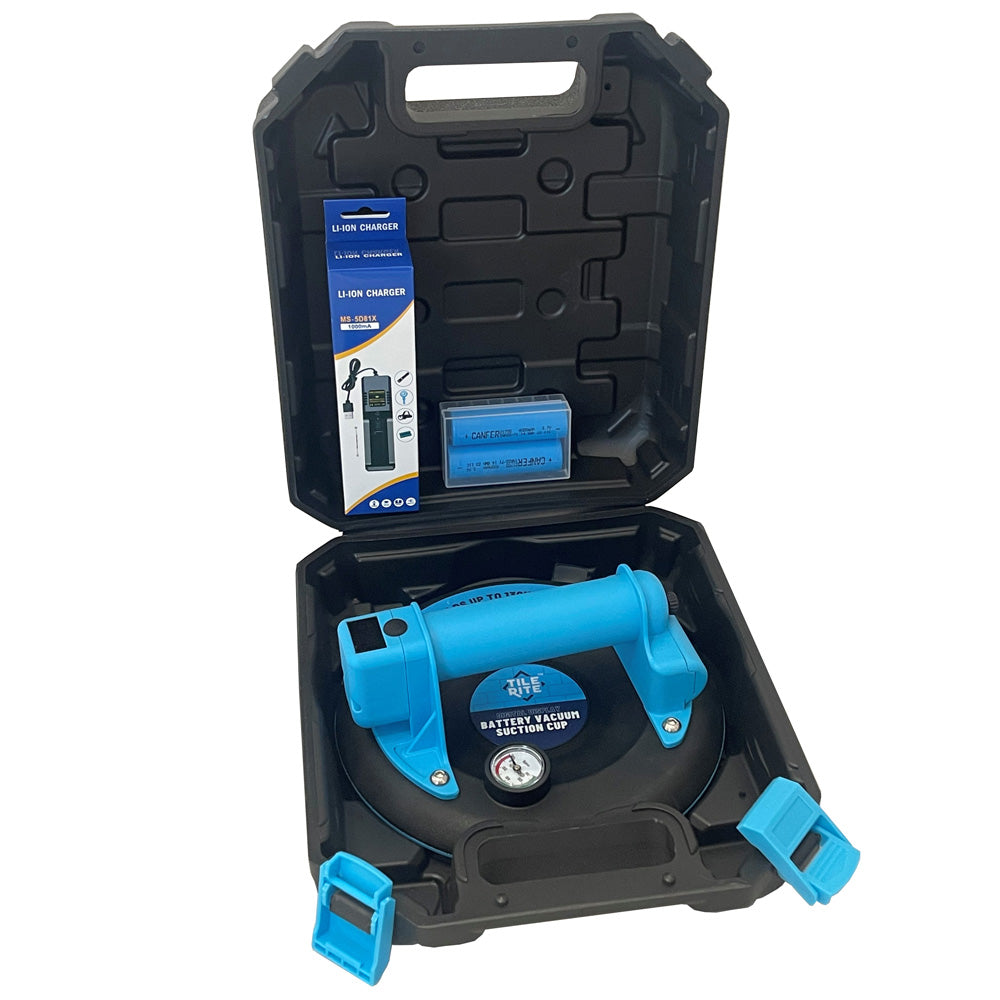

- Comes in a robust, blow moulded carry case with handle
- Kit contains 2 x batteries for uninterrupted use
- Digital Gauge & Manual Display: The digital display shows the maximum weight, in both KG and Lbs, that the Tile Rite 210mm Battery Vacuum Suction Cup can safely lift at that moment
- Automatic air replenishment: Air pressure is monitored and maintained, to ensure that the right level of suction is achieved
- Available as a single, or dual pack - save £20.00 when you buy two lifters
Use the Tile Rite 210mm Battery Vacuum Suction Cup on:
- For smooth and lightly riven surfaces
- Paving Slabs – Granite, Limestone, Slate, Sandstone, Porcelain, Travertine, Clay
- Tiles – Porcelain, Marble, Ceramic
- Glass
- Metal
- Plastic
- Wood
- Rough Concrete
- Plasterboard
What is the Tile Rite 210mm Battery Vacuum Suction Cup?
The Tile Rite 210mm Battery Vacuum Suction Cup assists builders, landscaping & tiling contractors, glaziers and domestic users to move non porous materials such as glass, ceramic, porcelain, paving slabs or tiles and any smooth, flat-surfaced material. The Tile Rite 210mm Battery Vacuum Suction Cup is a portable, battery operated vacuum cup, that lifts up to 130KGs.
How do you use the Tile Rite 210mm Battery Vacuum Suction Cup?
Use the battery operated vacuum suction cup on clean, lightly riven and smooth, non-porous surfaces, to lift slabs and tiles up to 130KG's in weight. Please note that dirt, debris, moisture or contaminants will reduce the slip resistance of the cup - it is important to ensure that the surface of your materials is clean prior to placement and lifting.
What can the Tile Rite 210mm Battery Vacuum Suction Cup be used for?
The Tile Rite 210mm Battery Vacuum Suction Cup is perfect for lightly textured, slightly riven and smooth materials such as porcelain, stone and ceramic tiles and paving slabs, glass, sheet metal and many hard non porous household surfaces.
What weight does the Tile Rite 210mm Battery Vacuum Suction Cup lift?
The Tile Rite 210mm Battery Vacuum Suction Cup can lift a horizontal load weight capacity of 130KG's.
What does the Tile Rite 210mm Battery Vacuum Suction Cup come supplied with?
The Tile Rite 210mm Battery Vacuum Suction Cup comes in a robust, blow moulded carry case carry case, with 2 x batteries for uninterrupted use, all day long!
